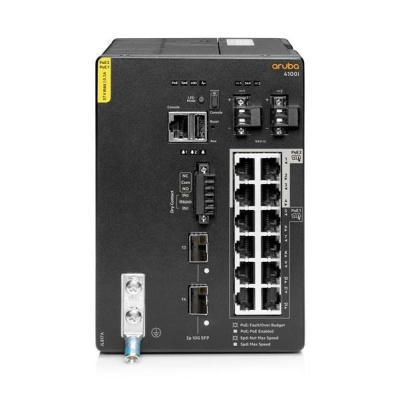

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch JL817A RENEW

doprava zdarma
Přidat do oblíbenýchAruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch JL817A RENEW
Provedení:DIN Rail; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L3; Technologie:Gigabit Ethernet 1000Mbps; Počet SFP portů:4; PoE budget (W):370; Přenosová rychlost LAN (Mb/s):570; Maximální počet portů:12; Management:SNMP/RMON; Vlastnosti switche:Funkce POE po portech.

Kód produktu713904
Part numberJL817AR

Záruka:24 Doživotní
Výrobce:Hewlett Packard Enterprise
Skladová dostupnost:Na dotaz
Vaše cena bez DPH
49321.49 Kč
Vaše cena včetně DPH
59679 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

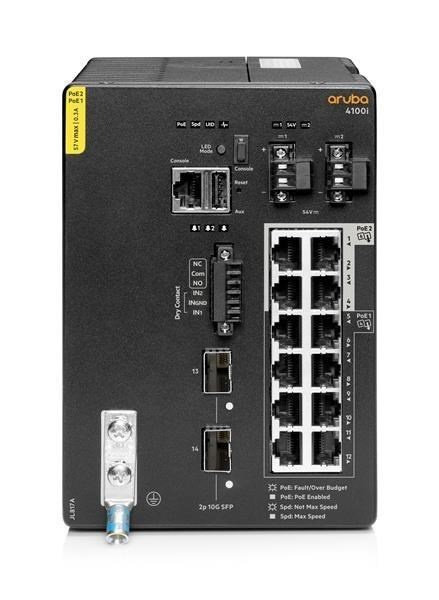

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A)

Description

4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port

8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port

2x 1/10G SFP ports

Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)

1x USB-C Console Port

1x RJ Console

1x USB Type A Host port

1x Alarm socket

2x DC power socket

Power Supplies

Field replaceable Industrial DIN Rail Power Supplies

Supported PSUs: JL819A, JL820A and JL821A

Supported 2 PSU with redundancy, non sharing

See external PSU specification table for available PoE power

Fans

Fanless

Physical Characteristics

Dimensions

(H) 160 mm x

(W) 113 mm x

(D) 162.9 mm (173.5 mm w/DIN Rail Bracket)

[6.3" x 4.4" x 6.4"(6.8" w/DIN Rail Bracket)]

Weight

3.84 kg (8.46 lbs)

Mounting And Enclosure

Cable management kit included. 2-post rack mounting kit included.

4-post rack mounting kit available separately

Additional Specifications

CPU

Dual Core ARM Cortex A9 @ 1016 Mhz

Memory And Flash

4 GB DDR3

32 GB eMMC

Packet Buffer

12.38MB (4.5MB Ingress/7.875MB Egress)

Performance

Model Switching Capacity

up to 64 Gbps

Model Throughput Capacity

up to 46 Mpps

Average Latency (LIFO-64-bytes packets)

1 Gbps: 2.390µSec , 10 Gbps: 2.038µSec

Switched Virtual Interfaces (dual stack)

1G: 5.32 µSec

10G: 1.48 µSec

25G: 2.78 µSec

40G: 1.31 µSec

100G: 1.42 µSec

IPv4 host table (ARP)

756

IPv6 host table (ND)

576

IPv4 unicast routes

576

IPv6 unicast routes

576

MAC Table Size

8192

IGMP Groups

512

MLD groups

512

IPv4/IPv6/MAC ACL entries (ingress)

256 / 128 / 256

Environment

Operating temperature

-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)

-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)

-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)

Non-Operating Storage relative humidity

5% to 95%, non-condensing

Max Operating Altitude

up to 4.2 km (13800 ft) Max

Max non-operating Altitude

4.6 km (15000 ft) Max

Electrical Characteristics

Frequency

N/A

AC voltage

Refer to the PSU specification table

DC Input Voltage

54V (switch input voltage, provided by JL819A,

JL820A, JL821A)

Current

JL820A- max 8A (360W PoE)

JL819A, JL821A- max 4.4A (180W PoE)

Maximum heat dissipation BTU/hr

With JL819A PSU:

89 BTU/hr at 230V - Room temperature (25°C)

With JL820A PSU:

95 BTU/hr at 230V - Room temperature (25°C)

With JL821A PSU:

94 BTU/hr at 48V - Room temperature (25°C)

Power Consumption

(JL819A, JL820A- 230VAC)

(JL821A- 48VDC)

With JL819A PSU:

Idle: 22W

100% Traffic Rate: 26W

100% Traffic Rate (w/ heater): 55W

With JL820A PSU:

Idle: 24W

100% Traffic Rate: 28W

100% Traffic Rate (w/ heater): 57W

With JL821A PSU:

Idle: 22W

100% Traffic Rate: 27W

100% Traffic Rate (w/ heater): 56W

*Heater will only turn on at extreme low

temperature condition

Safety

Europe:

EN 60950-1:2006 + A11:2009 + A1:2010 +

A12:2011 + A2:2013

EN 62368-1, Ed.2:2014

North America:

UL 62368-1, 2nd Edition

CAN/CSA C22.2 No. 62368-1-14

Worldwide:

IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013

IEC 62368-1:2014

EN/IEC 60825-1:2014 Class 1

UL/IEC 61010-2-201

GB 4943.1:2011

CNS 14336-1

K 60950-1

EMC

Europe:

EN 55011:2010/CISPR 11, Class A

EN 55032:2015/CISPR 32, Class A

EN 55035:2017/CISPR 35

EN 61000-3-2:2014, Class A

EN 61000-3-3:2013

US:

FCC CFR 47 Part 15: 2018 Class A

Canada:

ICES-003 Class A

Japan:

VCCI Class A

Taiwan (BSMI)

CNS 13438 Class A

Korea

KN 35:2015

Korea

KN 32 Class A

Aus/NZ

AS/NZS CISPR 32 Class A

Worldwide:

VCCI Class A

CISPR 11 Class A

CISPR 22 Class A

Lasers

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Class 1 Laser Products / Laser Klasse 1

(Applicable for accessories - Optical Transceivers only

Industry Specific Compliance

Industrial

EN 61000-6-2 Industrial Immunity

EN 61000-6-4 Industrial Emissions

EN 61000-6-1 Light Industrial Immunity

Power Substation

IEEE 1613 Electric Power Stations

Communications Networking

EN/IEC 61850-3 Electric Substations

Communications Networking

Railway Application

EN 50121-3-2 Railway - Apparatus for Rolling Stock

EN 50121-4 Railway - Signaling and Telecommunications Apparatus

EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment

Traffic Control System

NEMA TS 2-2016

Protection Standard

EN 60529 IP30

Immunity

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN 61000-4-2 (air - 15kV, contact - 8kV)

Radiated

EN 61000-4-3 (10V/m UTP, 20V/m STP)

EFT/Burst

EN 61000-4-4

4kV (1kV UTP, 4kV STP) using:

  • JL819A, JL820A with SPD2-300-2P0-R surge protector
  • JL821A with SPD2-150-2P0-R surge protector needed.

Without surge protector and STP:

  • JL819A or JL820A PSU: 2kV
  • JL821A PSU: 1kV

Surge

EN 61000-4-5

2kV/4kV(UTP) using:

  • JL819A, JL820A with SPD2-300-2P0-R surge protector
  • JL821A with SPD2-150-2P0-R surge protector

Without surge protector:

  • JL819A or JL820A PSU: 1kV/2kV
  • JL821A PSU: N/A

Conducted

EN 61000-4-6 (3Vrms UTP, 10Vrms STP)

Power Frequency Magnetic Field

EN 61000-4-8 (100A/m 1min,1000A/m 1sec)

Damped Oscillatory Magnetic Field

EN 61000-4-10 (100A/m)

Conducted CM Disturbances

EN 61000-4-16 (30V, Cont/300V, 1 sec)

Ripple Immunity DC Power

EN 61000-4-17 (10%)

Damped Oscillatory Wave

EN 61000-4-18 (2.5kV, 1MHz)

Voltage Dips and interruptions

EN 61000-4-29; EN 61000-4-11 (Level 3)

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Dynamics

Vibration

IEC 60068-2-6 & 64 (operation & nonoperation)

Shock

IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine)

IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal)

IEC 60068-2-31 (Non-operational Free Fall, 100mm)

IEC 60068-2-31 (Non-operational Topple)

Railway Application

Compliance to EN 50155 (mounting) & IEC 61373

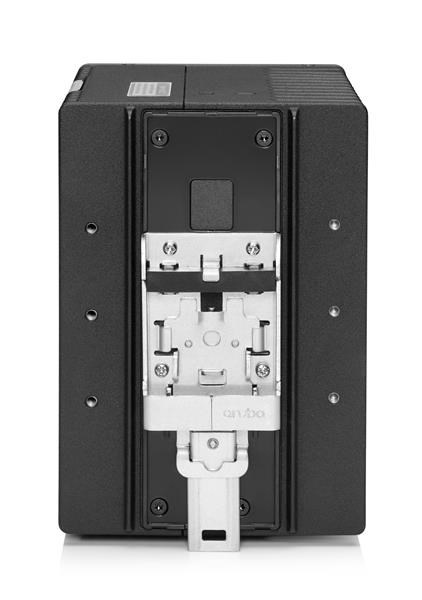

Mounting and Enclosure

Mounts to JL822A (3U DIN-to-Rack Bracket, puchased separately) which allows the switch to be mounted in an EIA/TIA standard 19" telco rack.

Switch can be directly installed on a DIN rail mounted to a suitable surface to withstand the weight of the switch and power supplies.

DIN rail mounting (included).

Can be mounted in 90-degree manner to present the cables exiting the side of the switch - see installation guide for details.

Wire

Power Input

AWG 14 up to 2m

Alarm connector

AWG 18-16

PoE Budget

User configurable PoE budget - If 2 external power supply units are used concurrently, please set according to PSU with lower PoE capacity.

JL819A

Below ambient 50°C: 180W

At ambient 60°C: 140W

At ambient 70°C: 80W

JL820A

Below ambient 50°C: 360W

At ambient 60°C: 320W

At ambient 70°C: 200W

JL821A

With PSU input = 48V-55V DC

Below ambient 50°C: 180W

At ambient 60°C and 70°C: 150W

With PSU input = 24V DC

Below ambient 70°C: 150W

With PSU input = 12V DC

Below ambient 60°C: 60W

At ambient 70°C: 50W

Does not support PSU Power Sharing. Refer to Installation & Getting Started Guide for the PoE budget setup.

.
Maximální počet portů: 12
Technologie: Gigabit Ethernet 1000Mbps
Management: SNMP/RMON
Vlastnosti switche: Funkce POE po portech
Provedení: DIN Rail
PoE budget (W): 370
Přenosová rychlost LAN (Mb/s): 570
Funkce: QoS (Quality of service)
Funkce: VLAN (virtual local area network)
Funkce: PoE (Power over ethernet)
Funkce: L3
Počet SFP portů: 4
