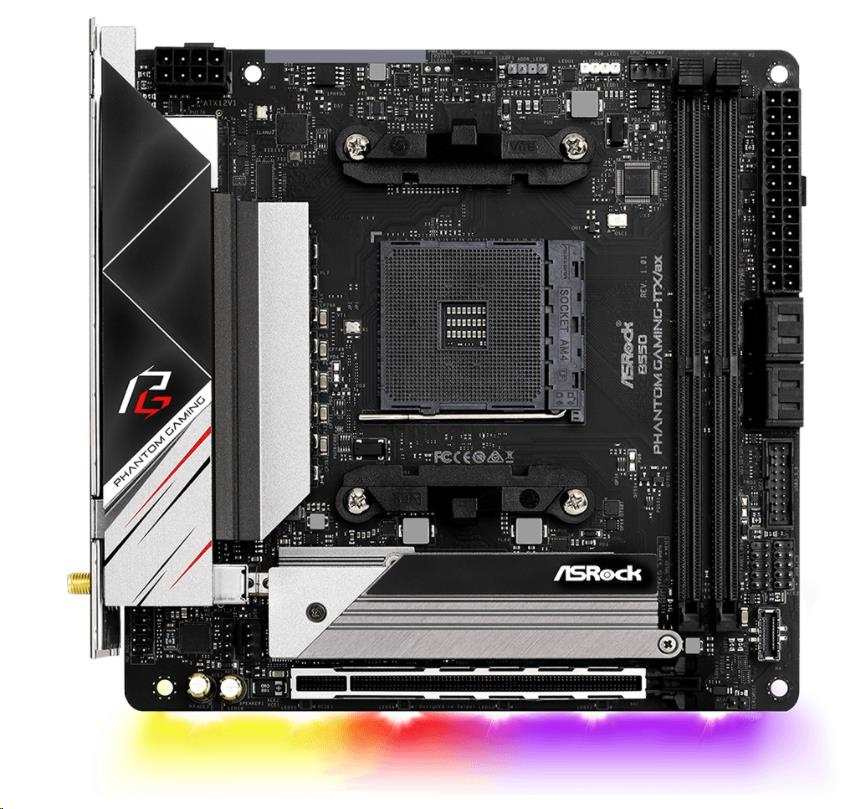

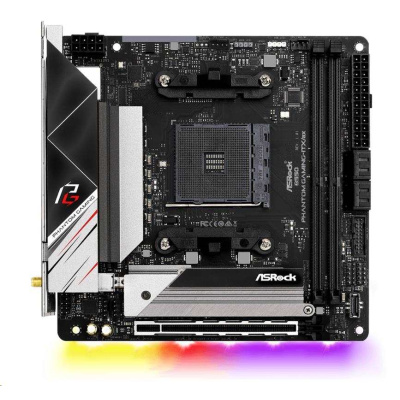

ASRock MB Sc AM4 B550 PHANTOM GAMING-ITX/AX, AMD B550, 2xDDR4, HDMI

Name: ASRock MB Sc AM4 B550 PHANTOM GAMING-ITX/AX, AMD B550, 2xDDR4, HDMI
Brand: ASRock
SKU: 380618
Price: 5240 CZK
Availability: OutOfStock

Přidat do oblíbených

Dotaz na prodejce >

Přidat produkt k porovnání >Přidat produkt k oblíbeným >

Popis

Parametry

Hlídací pes

B550 Phantom Gaming-ITX/ax

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
8 Power Phase Design, Digi Power, 90A Dr.MOS
Supports DDR4 5400+ (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
Intel® 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1

TECHNICAL SPECIFICATIONS

Gaming Armor	Power - Hi-Density Power Connectors (24 pin and 8 pin) Memory - 15µ Gold Contact in DIMM Slots VGA Card - 15µ Gold Contact in VGA PCIe Slot (PCIE1) Internet - Intel® 2.5G LAN Audio - Nahimic Audio
Unique Feature	ASRock USB 3.2 Gen2 - ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium 90A Power Choke - 90A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 8 Layer PCB - 2oz Copper PCB Intel® 2.5G LAN Intel® 802.11ax WiFi ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD B550
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Next Generation Ryzen series APUs support DDR4 5400+(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft® PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Slots	AMD Ryzen series CPUs (Matisse) - 1 x PCI Express x16 Slot (PCIE1: Gen4x16 mode)* AMD Ryzen series APUs - 1 x PCI Express x16 Slot (PCIE1: Gen3x16 mode)* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15µ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)* - 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit (M2_1)
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - GigaLAN Intel® I225V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.1 + High speed class II - Supports MU-MIMO
Connector	- 1 x RGB LED Header* - 1 x Addressable LED Header * Supports in total up to 5V/3A, 15W LED Strip - 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15µ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - 120dB SNR DAC with Differential Amplifier - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - 15µ Gold Audio Connector - Nahimic Audio
Rear panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC - ASRock Key Master - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V, 2.50V, +1.8V, VDDP Voltage Multi-adjustment
Accessories	- Quick Installation Guide, Support CD - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x Screw for M.2 Socket
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System	- Microsoft® Windows® 10 64-bit
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 8 Layer PCB - 2oz Copper PCB
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Technologie paměti RAM: DDR4

Socket (patice): Socket AM4

Chipset: AMD

Chipset: AMD B550

PCI Express x16: 1

Podpora RAID: 1

Podpora RAID: 10

COM port: Ne

LPT port: Ne

Formát základní desky: Mini-ITX

3.5mm Jack: Ano

Bezdrátové připojení: WiFi + Bluetooth

Pro procesory: AMD

Počet paměťových slotů: 2

DisplayPort: 1

TPM: Ne

USB 2: 2

USB 3: 8

PCI: 0

M.2 slot: 2

SATA 3: 4

VGA: 0

DVI: 0

HDMI: 1

Led Header: Ano

PCI Express x1: 0

USB C: 1

Aktuální cena produktu je5240Kč s dph

Kód produktu	380618
Part number	B550 PHANTOM GAMING-ITX/AX
EAN produktu	4710483931611

Záruka:	36 Měsíc(ů)
Výrobce:	ASRock
Skladová dostupnost:	Na dotaz
