ASUS MB Sc AM4 PRIME B450-PLUS, AMD B450, 4xDDR4, VGA
Popis
Parametry
Hlídací pes

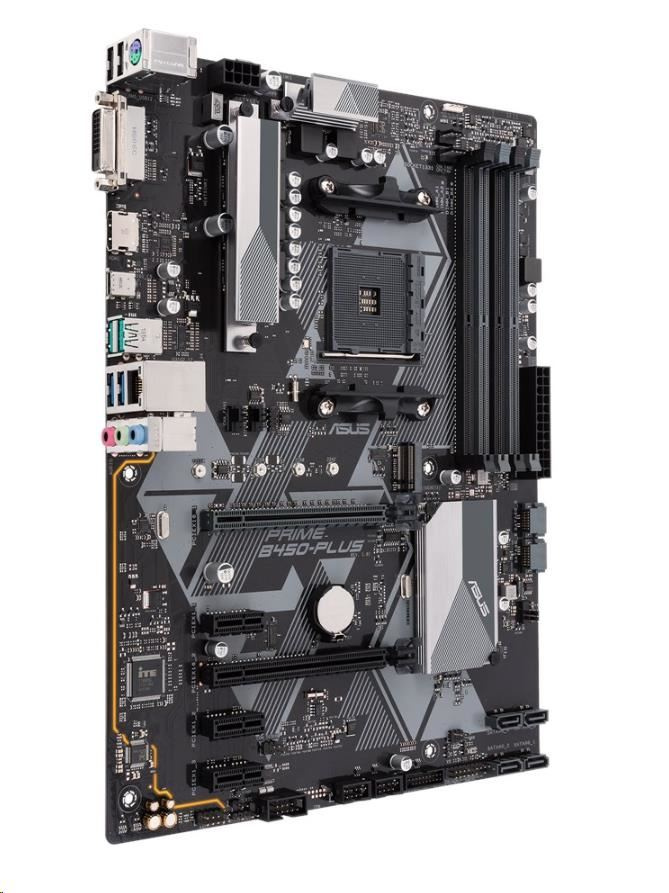

PRIME B450-PLUS
AMD AM4 ATX motherboard with Aura Sync RGB header, DDR4 3200MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2
- Fan Xpert 4 Core: Comprehensive controls for fans and AIO pump, plus GPU-temperature sensing for cooler gaming
- Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2
- ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
- 5X Protection III: Multiple hardware safeguards for all-around system protection
TECHNICAL SPECIFICATIONS
| CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
| Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x SATA 6Gb/s port(s) AMD B450 chipset: 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Realtek® RTL8111H ASUS LAN Guard |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC * Audio Feature: - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation: 2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation: 1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM) AMD B450 chipset: 2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A) AMD B450 chipset: 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset: 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board) |
| Special Features | ASUS TUF PROTECTION - ASUS SafeSlot Core: Fortified PCIe with solid soldering - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features: - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall) |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |

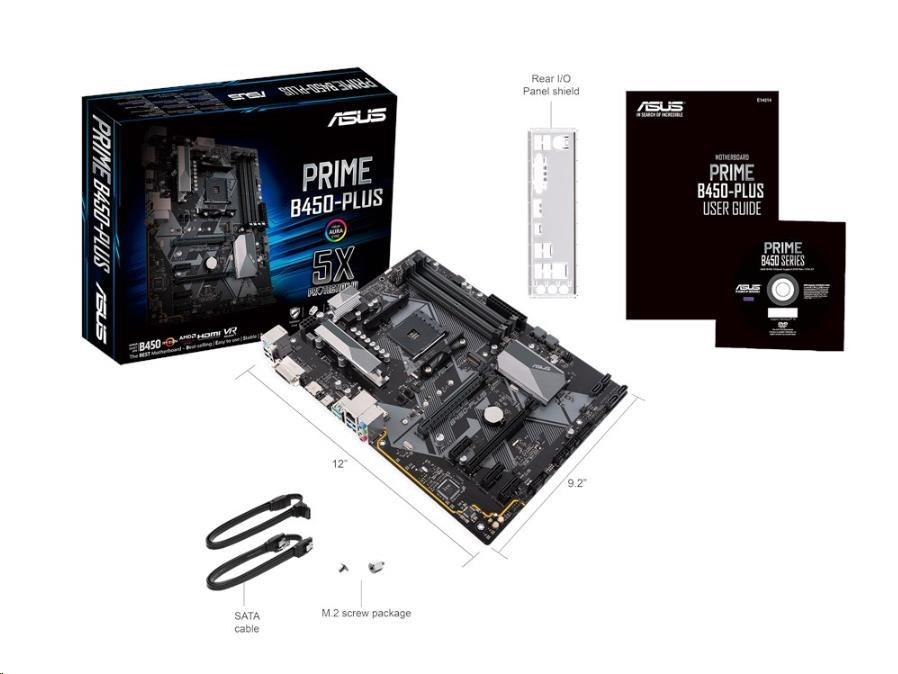

| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12.0 x 9.2 inch (30.5 x 23.4 cm) |
| Note | *Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Chipset:
AMD B450
PCI Express x16:
2
Podpora RAID:
0
Podpora RAID:
1
Podpora RAID:
10
COM port:
Ano
LPT port:
Ne
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
4
DisplayPort:
0
TPM:
Ne
USB 2:
6
USB 3:
6
PCI:
0
M.2 slot:
1
SATA 3:
6
VGA:
0
DVI:
1
HDMI:
1
Led Header:
Ano
PCI Express x1:
3
USB C:
1
LAN:
1Gbit/s
DisplayPort Type-C:
0
Počet Thunderbolt:
0
PCI Express x8:
0
Aktuální cena produktu je2138Kč
s dph
