ASUS MB Sc LGA1700 PRIME H610M-A WIFI D4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, WI-FI, mATX

Přidat do oblíbenýchASUS MB Sc LGA1700 PRIME H610M-A WIFI D4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, WI-FI, mATX
Formát základní desky:micro ATX; Chipset:Intel H610; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:2; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:1; LAN:1Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:1; DVI:0; COM port; 3.5mm Jack.

Kód produktu431812
Part number90MB1C80-M0EAY0
EAN produktu4711081758211

Záruka:36 Měsíc(ů)
Výrobce:Asus
Skladová dostupnost:Skladem
Vaše cena bez DPH
2426.45 Kč
Vaše cena včetně DPH
2936 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

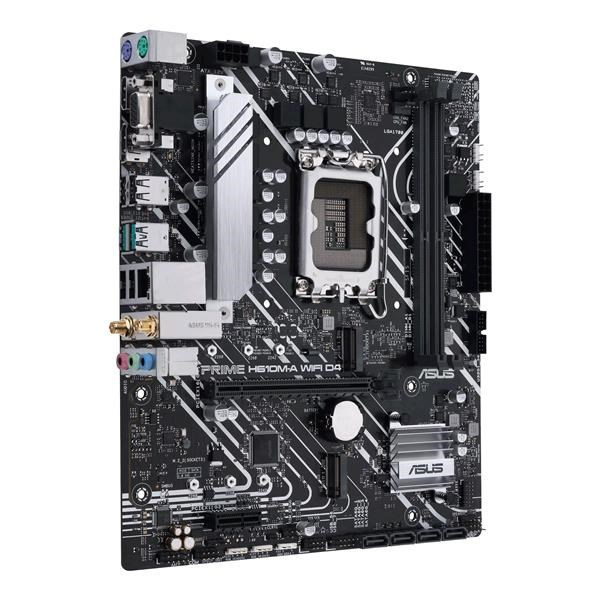

PRIME H610M-A WIFI D4

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

1 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 1Gb Ethernet

Wireless & Bluetooth

Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

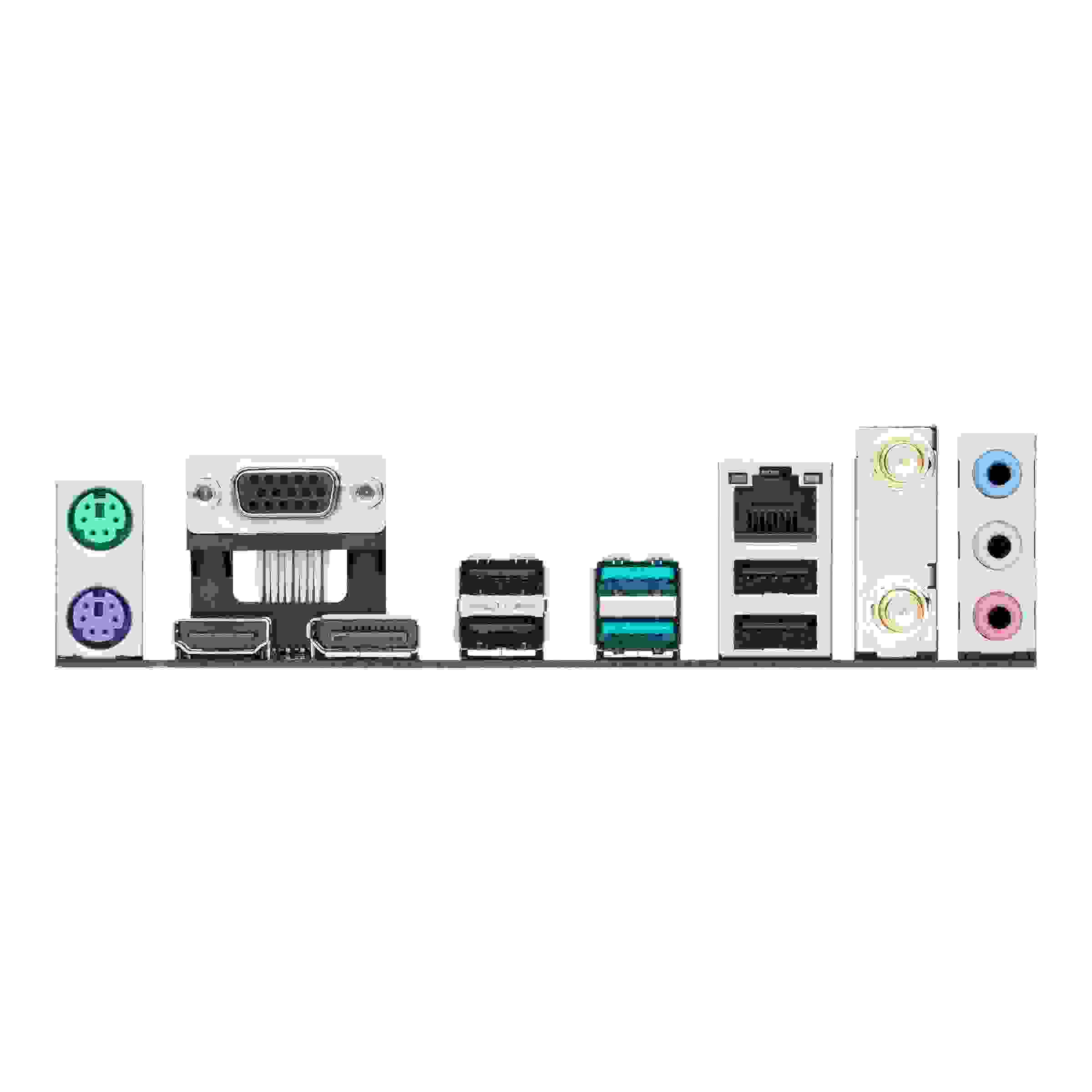

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor
9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )

.
Technologie paměti RAM: DDR4
Socket (patice): Socket 1700
Chipset: Intel H610
PCI Express x16: 1
Podpora RAID: Bez RAID podpory
COM port: Ano
LPT port: Ne
Formát základní desky: micro ATX
3.5mm Jack: Ano
Bezdrátové připojení: WiFi + Bluetooth
Pro procesory: Intel
Počet paměťových slotů: 2
DisplayPort: 1
TPM: Ano
M.2 slot: 2
SATA 3: 4
VGA: 1
DVI: 0
HDMI: 1
PCI Express x1: 1
LAN: 1Gbit/s
