ASUS MB Sc LGA1700 ROG STRIX B760-A GAMING WIFI D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, WI-FI
Popis
Parametry
Hlídací pes

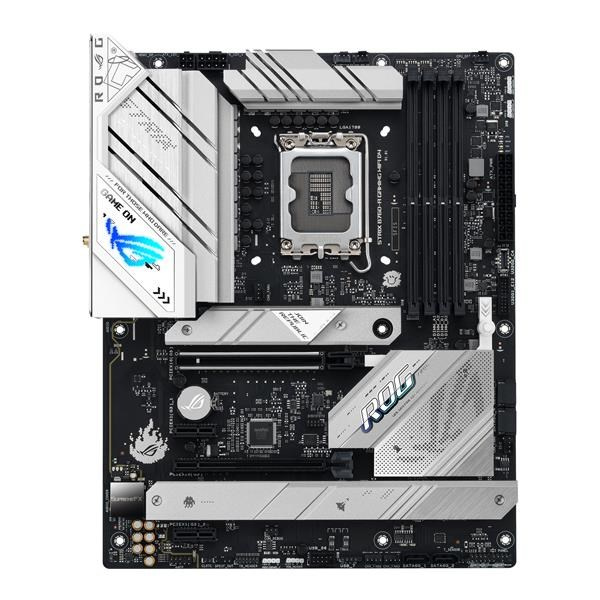

ROG STRIX B760-A GAMING WIFI D4
TECHNICAL SPECIFICATIONS
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI® port*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| Intel® B760 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)* | |
| 2 x PCIe 3.0 x1 slots* | |
| * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode. | |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel® B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard // TUF LANGuard | |
| Wireless & Bluetooth® | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 6 ports) | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - Savitech SV3H712 AMP | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - CPU Socket lever protector | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTS® Sound Unbound | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - DIGI+ VRM | |
| - PC Cleaner | |
| MyAsus | |
| Norton 360 for Gamers | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties package | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x ROG Strix thank you card | |
| 1 x M.2 Rubber Packages | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Chipset:
Intel B760
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
M.2 slot:
3
SATA 3:
4
VGA:
0
DVI:
0
HDMI:
1
PCI Express x1:
2
DisplayPort Type-C:
0
