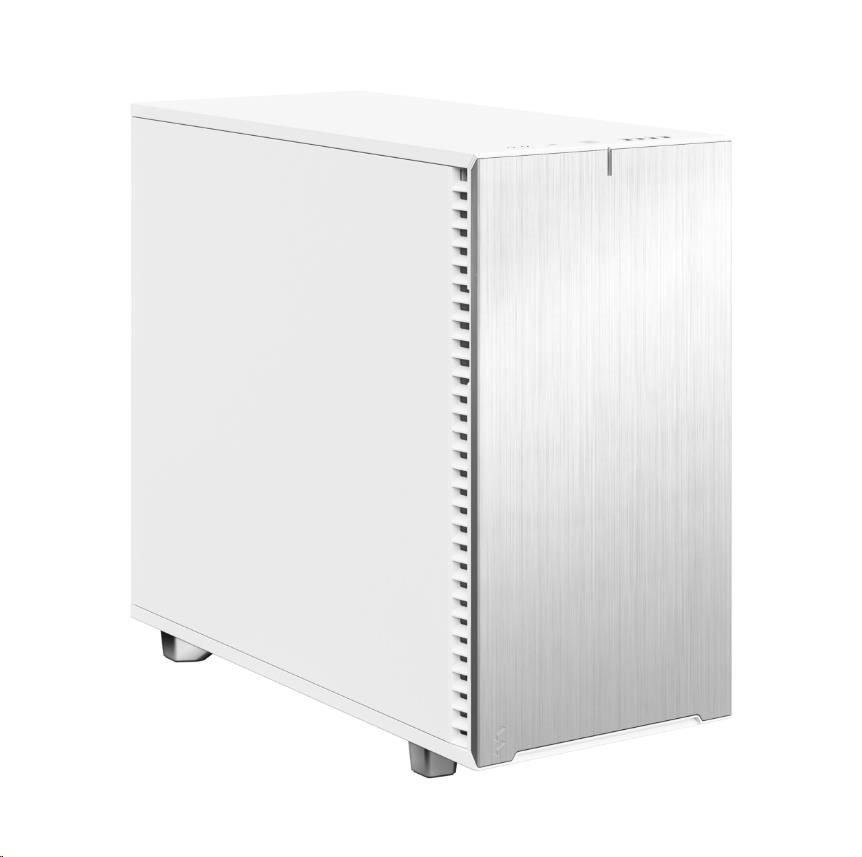

Define 7
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
• New chassis design opens up to fully expose the case interior
• Anodized aluminum front panel with reversible dual-handed hinges
• Multibracket converts unused fan positions to HDD, SSD or pump mounts
TECHNICAL SPECIFICATIONS
| Specification | - 3.5"/2.5" Universal drive brackets: 6 included, 14 positions total
- Dedicated 2.5" drive brackets: 2 trays included, 4 positions total
- 5.25” drive mounts: 1
- Expansion slots: 7 + 2
- Front ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
- Total fan mounts: 9 x 120/140 mm
- Front fan: 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
- Top fan: 3 x 120/140 mm
- Rear fan: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
- Bottom fan: 2 x 120/140 mm
- Dust filters: Top, 2 x front, full length bottom
- Fixed velcro straps: Yes
- Cable routing grommets: Yes
- Captive thumbscrews: HDD brackets, SSD brackets, PSU bracket
- Left side panel: Industrial sound-damped steel
- Right side panel: Industrial sound-damped steel
|
| Compatibility | - Motherboard compatibility: E-ATX (max 285 mm) / ATX / mATX / mITX
- Power supply type: ATX
- PSU max length: 250 mm (with HDD cage installed)
- GPU max length: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)
- CPU cooler max height: 185 mm
- Front radiator: Up to 360/280 mm
- Top radiator: Up to 360/420 mm
- Rear radiator: 120 mm
- Bottom radiator: Up to 240/280 mm
- Cable routing space: 30 mm
|
| Dimensions | - Case dimensions (LxWxH): 547 x 240 x 475 mm
- Case dimensions w/o feet/protrusions/screws: 533 x 240 x 451 mm
- Package dimensions (LxWxH): 558 x 363 x 641 mm
- Net weight: 13.49 kg
- Package weight: 15.98 kg
|
| More information | https://www.fractal-design.com/products/cases/define/define-7/white/ |
.
Provedení skříně:
Midi Tower
Barva skříně:
Bílé
Počet pozic 5.25":
1
Počet pozic 3.5" (HDD):
6
Počet pozic 2.5" (SSD):
4
Vybavení PC skříně:
Bez integrovaného zdroje
Vybavení PC skříně:
Přední USB panel
Vybavení PC skříně:
Přední Audio panel
Aktuální cena produktu je5272Kč
s dph
