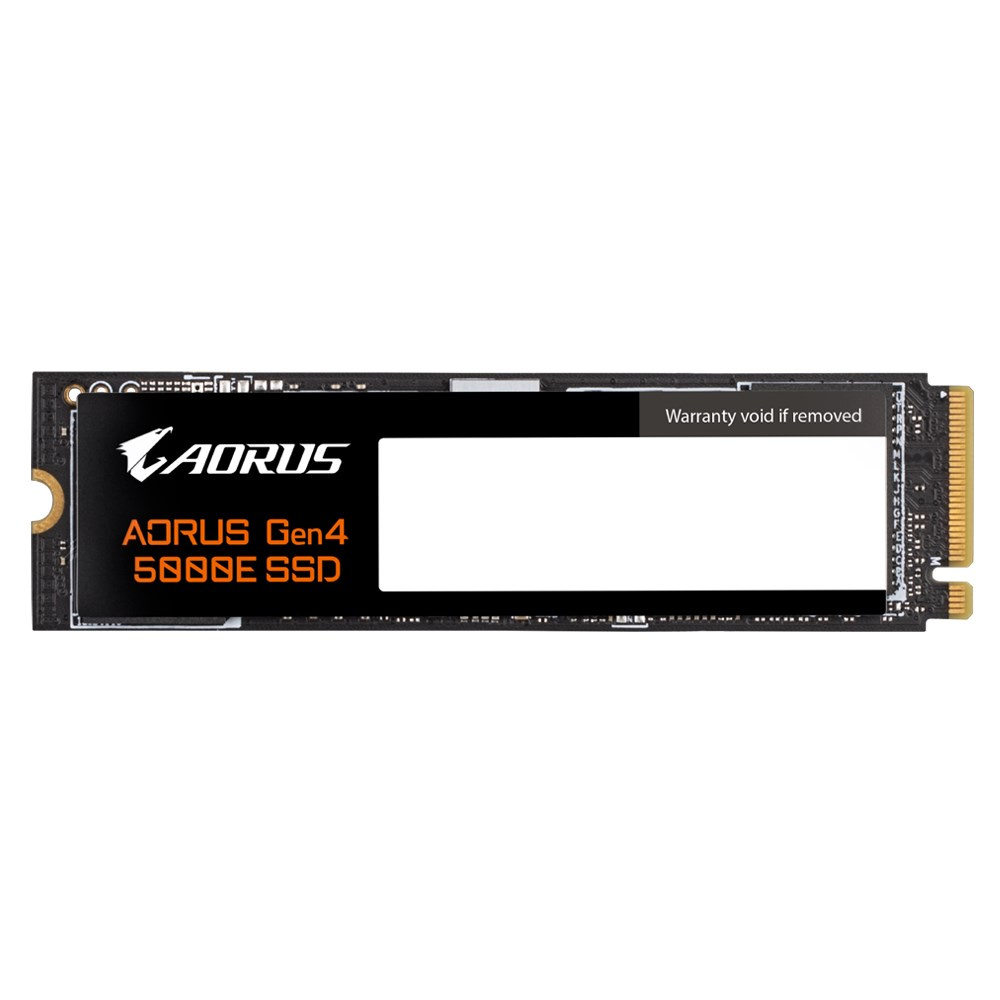

GIGABYTE SSD 500GB AORUS Gen4 5000E SSD, NVMe
AORUS Gen4 5000E SSD 500GB
- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.4
- Total Capacity: 500GB
- Sequential Read Speed : up to 5,000MB/s
- Sequential Write speed : up to 3,800MB/s
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
- Energy-efficient
- Warranty: Limited 5-years
Interface
PCI-Express 4.0x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
500GB
NAND
3D TLC NAND Flash
Sequential Read speed
Up to 5,000 MB/s
Sequential Write speed
Up to 3,800 MB/s
Dimension
80 x 22 x 2.3 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average : R : 4W / W : 4W
Power Consumption(Idle)(ASPT on)
20mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Warranty
1. Limited 5-years or 300TBW.
2. Limited warranty based on 5 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
