HPE PL DL360g11 5416S (2.0G/16C/30M) 1x32G (P43328) VROC 8SFF 1x800W 2x10Gb Base-T PCIe NBD333 1U RENEW P51931-421

SKU Number

P51931-421

Model Name

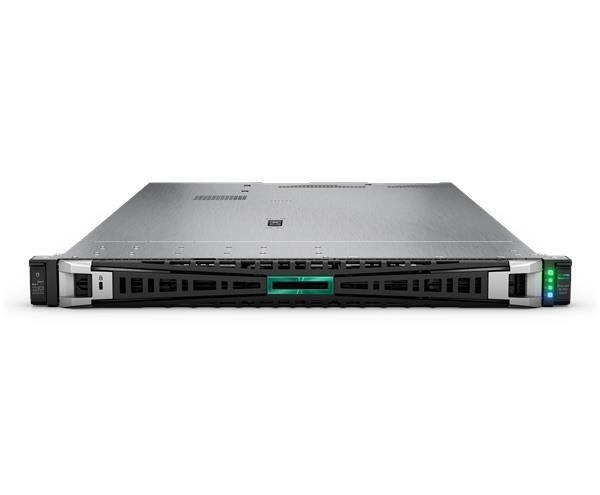

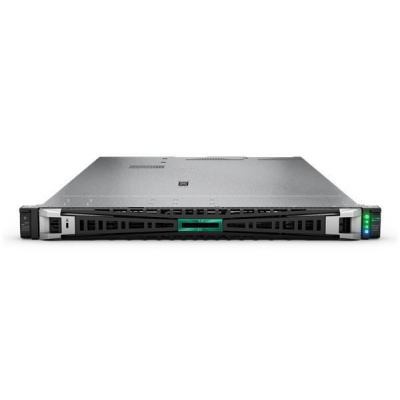

HPE ProLiant DL360 Gen11 5416S 2.0GHz 16-core 1P 32GB-R NC 8SFF 800W PS Server

Chassis

HPE ProLiant DL360 Gen11 8SFF NC CTO Server (P52499-B21)

Processor

5416S (16-core, 2.0GHz, 150W)

Number of Processors

One with standard heatsink

Memory

32 GB RDIMM 2Rx8 4800 MT/s

(1x 32 GB) (P43328-B21)

Notes: Runs at 4400 MT/s due to processor limitation.

Network Controller

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE (P26253-B21)

Notes: No embedded networking

Storage Controller

Embedded Intel® VROC SATA for HPE ProLiant Gen11, with 14 SATA ports (10-ports accessible); Choice of HPE modular Smart Array and PCIe plug-in controller

Hard Drive

Internal Storage

8 SFF NC CTO Server (upgradeable to 8+2 SFF front)

PCIe Slots

2-slots (x16 FH, x16 HH) as standard.

Upgradeable to 3^rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in a 2^nd processor configuration.

All PCIe Slos are in design with up to 9.5" length.

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P38995-B21) (-B21 & -291)

1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21) (-421)
