Manhattan HDMI rozdělovač, 4K 4-Port HDMI Splitter, 4K@60Hz, AC Powered, černá
Popis
Parametry
Hlídací pes

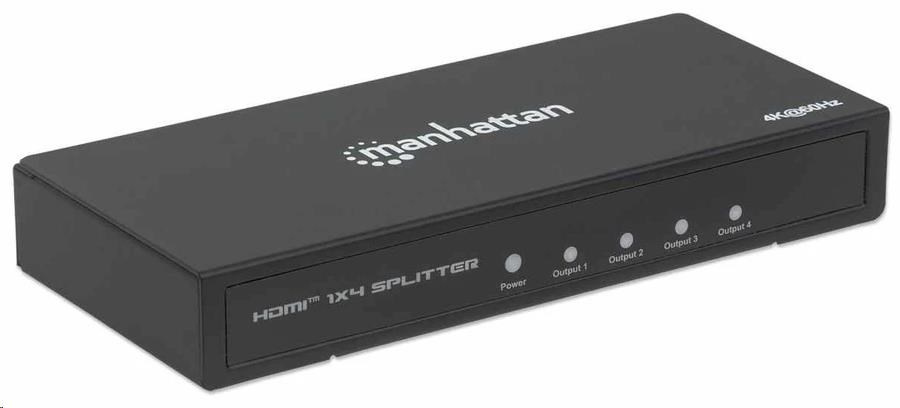

4K 4-Port HDMI Splitter
4K@60Hz, AC Powered, Black
- Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays
- 4K@60Hz resolution, full 3D video, Deep Color and High Dynamic Range (HDR)
- Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
- Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
- Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
- HDCP compliant
- Multiple splitters (three total) may be cascaded up to support 10 4K displays
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Plug and play
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | - HDCP 2.2/1.4 - CTS 1.4b - CE - FCC - RoHS2 |
| Package Contents | - 4K 4-Port HDMI Splitter - Power adapter - Quick Instruction Guide |
| General | |
| Source-to-splitter and splitter-to-display range | up to 20 m (66 ft.) |
| 4K@60Hz 4:4:4 — total 10 meters Max. 5 m from source to splitter Max. 5 m from splitter to display | |
| 4K@30Hz — total 20 meters Max. 10 m from source to splitter Max. 10 m from splitter to display | |
| Power adapter | 5 VDC / 2 A; 1.2 m (4 ft.) |
| Power consumption | 5W |
| Connections | |

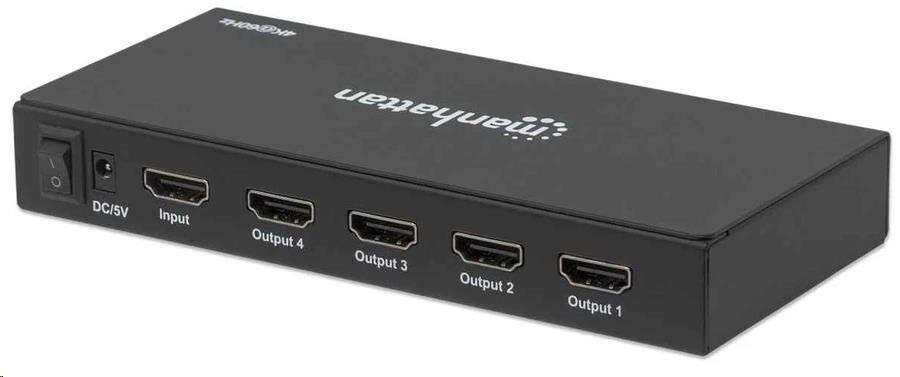

| Connections | One HDMI female (input) Four HDMI female (output) One 5 VDC power female (input) |
| Signal Input/Output | |
| Input video signal | 0.5 – 1.0 V p-p |
| Input DDC signal | 5 V p-p (TTL) |
| Maximum single-link range | 18 Gbps and 4096x2160 at 60 Hz resolution |
| Output video | HDMI 2.0, HDCP 2.2 |
| Supported Video Resolutions | |
| DTV/HDTV | 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz |
| Physical | |
| LED indicators | power and port connection |
| Dimensions | 154 x 69 x 23 mm (6.1 x 2.7 x 0.9 in.) |
| Weight | 0.25 kg (0.7 lb.) |
| Housing | metal |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 0 – 96% |
.
Specifikace kabelu / redukce:
Adaptér, Redukce
Aktuální cena produktu je1637Kč
s dph
