Manhattan rozbočovač, MST hub, DisplayPort na Dual DisplayPort (M/F), 4K@30Hz, černá

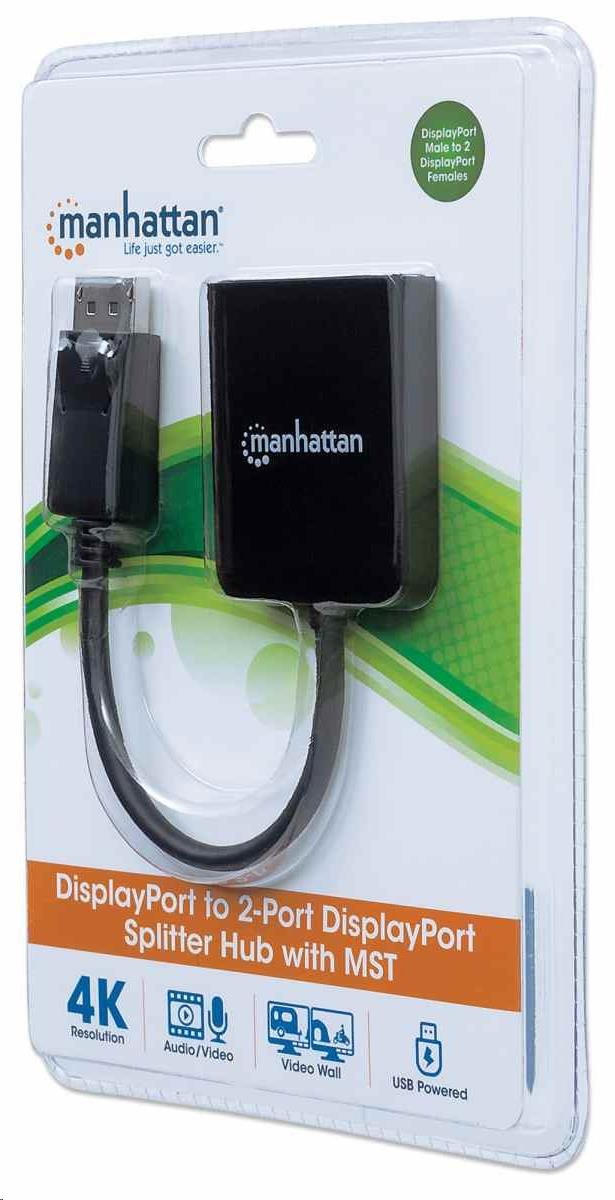

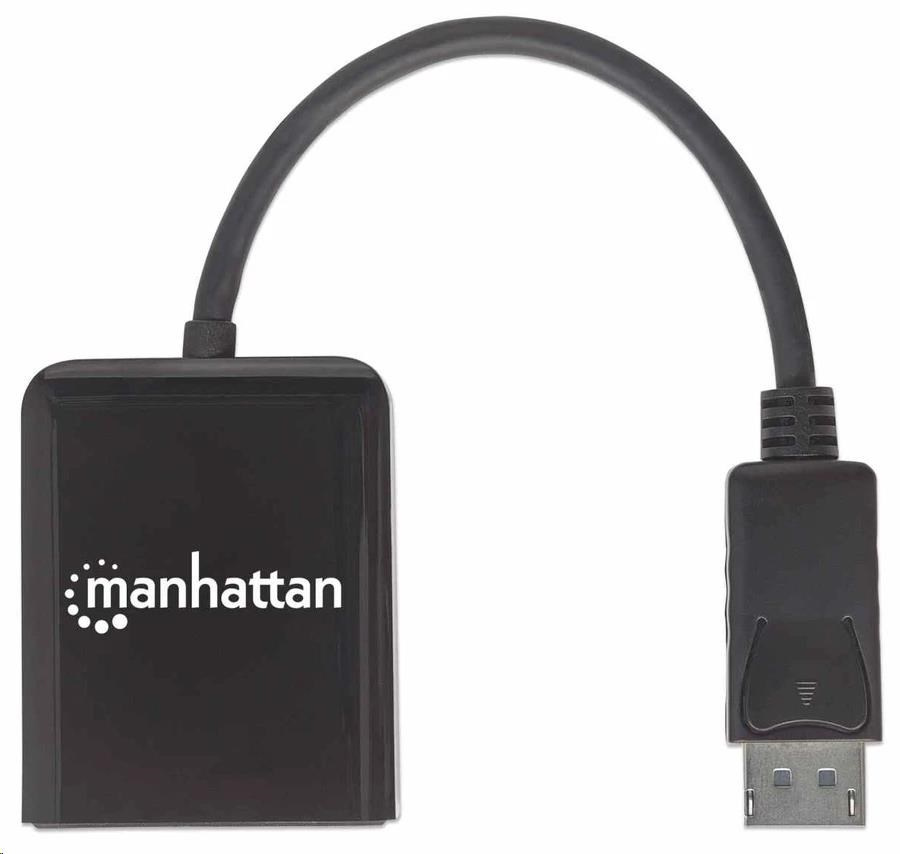

DisplayPort to Dual DisplayPort - MST Hub
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.
The Manhattan DisplayPort to Dual DisplayPort - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual DisplayPort - MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K DP displays. MST mode creates a video wall from two displays giving the user a more immersive experience while gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual DisplayPort - MST Hub can provide long service and reliable performance. Quickly connect DP cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort solution is complete — no software/hardware configuration or complicated settings required.
- Duplicates an Ultra-High-Definition (UHD) DisplayPort signal for up to two UHD DisplayPort displays
- 4K@30Hz resolution, full 3D video and Deep Color
- Supports compressed DTS Master Audio, as well as 7.1 surround sound audio up to 192 kHz
- Supports Mirror, Extended and Mutli-Stream Transport (MST) modes to maximize work or gaming capabilities
- Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
- Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
- Multi-Stream Transport (MST) mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30Hz — as one; requires a graphics card that supports video-wall function
- USB powered with Plug and Play installation; no special setup or remote required
- Integrated DisplayPort cable
- Ideal for enhancing display capabilities or creating a video wall in schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
- HDCP 2.2 compliant
- Gold-plated contacts for corrosion-free connections
- Three-Year Warranty
TECHNICAL SPECIFICATIONS
Standards and Certifications | DP 1.2 HDCP 2.2 DVI 1.0 CTS 1.4a CE FCC RoHS2 |
System Requirements | Windows XP/Vista/7/8.1/10 DP 1.2 graphics card |
Package Contents | DisplayPort to Dual DisplayPort - MST Hub USB power cable Quick Instruction Guide |
Connections | One DisplayPort (DP) male (input) Two DisplayPort (DP) female (output) One 5 V / 2 A USB Micro-B power female (input) |
Signal Input/Output | |
Input video signal | 0.5 – 1.0 V p-p |
Input DDC signal | 5 V p-p (TTL) |
Maximum single-link range | 5.4 Gbps, 3840x2160 at 30 Hz resolution |
Output video | HDCP 2.2, DVI 1.0 |
Video Resolutions | |
DTV/HDTV | 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz |
Physical | |
Dimensions | 255 x 50 x 11 mm (9.8 x 2.0 x 0.4 in.) |
5 V / 1 A USB Micro-B power cable | 1 m (3 ft.) |
Weight | 50 g (1.8 oz.) |
Housing | plastic |
Operating Environment | |
Operation Temperature | 0 – 40°C (32 – 104°F) |
Storage Temperature | -20 – 60°C (-4 – 140°F) |
Humidity (noncondensing) | 0 – 96% |
.
