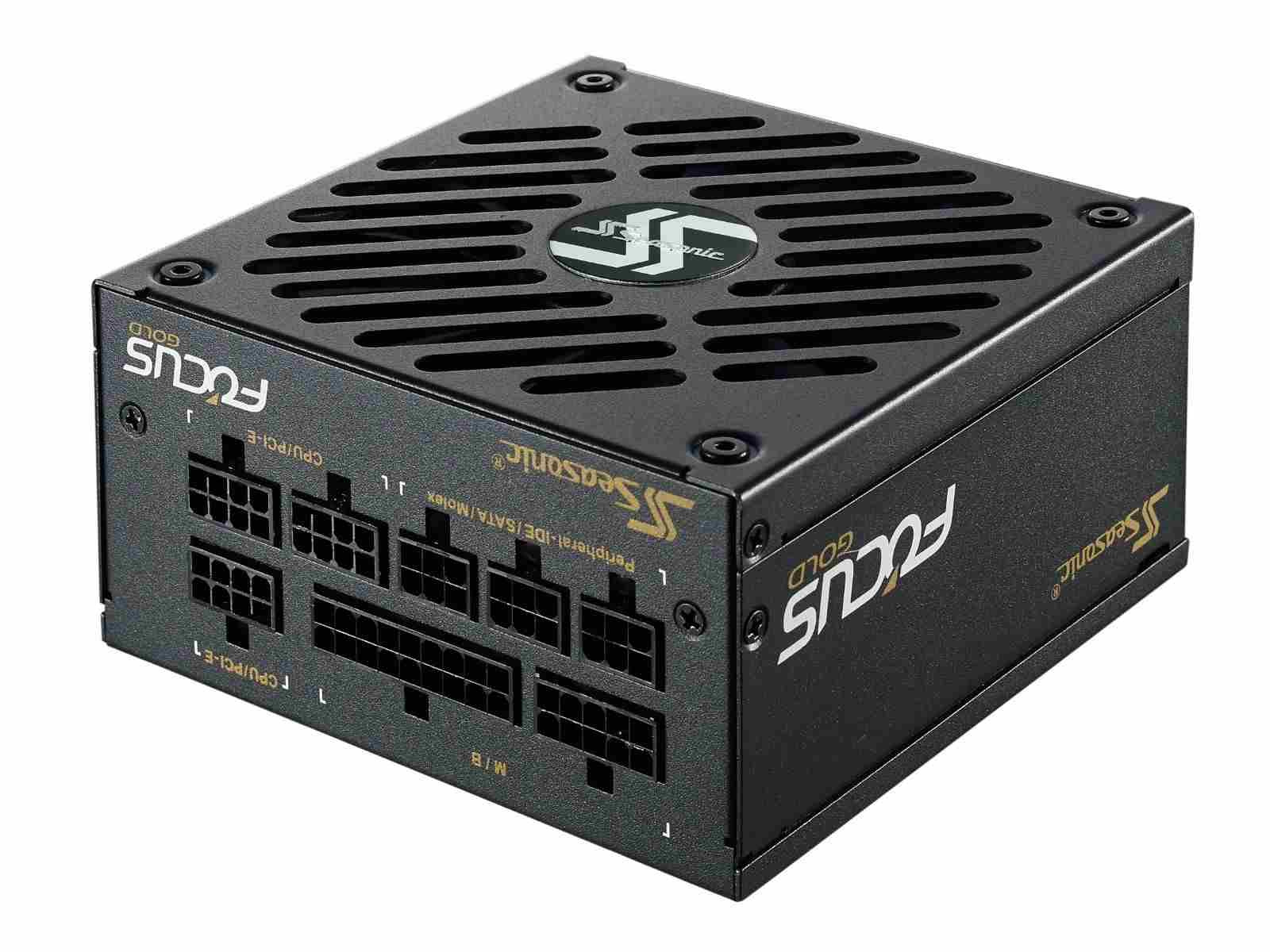

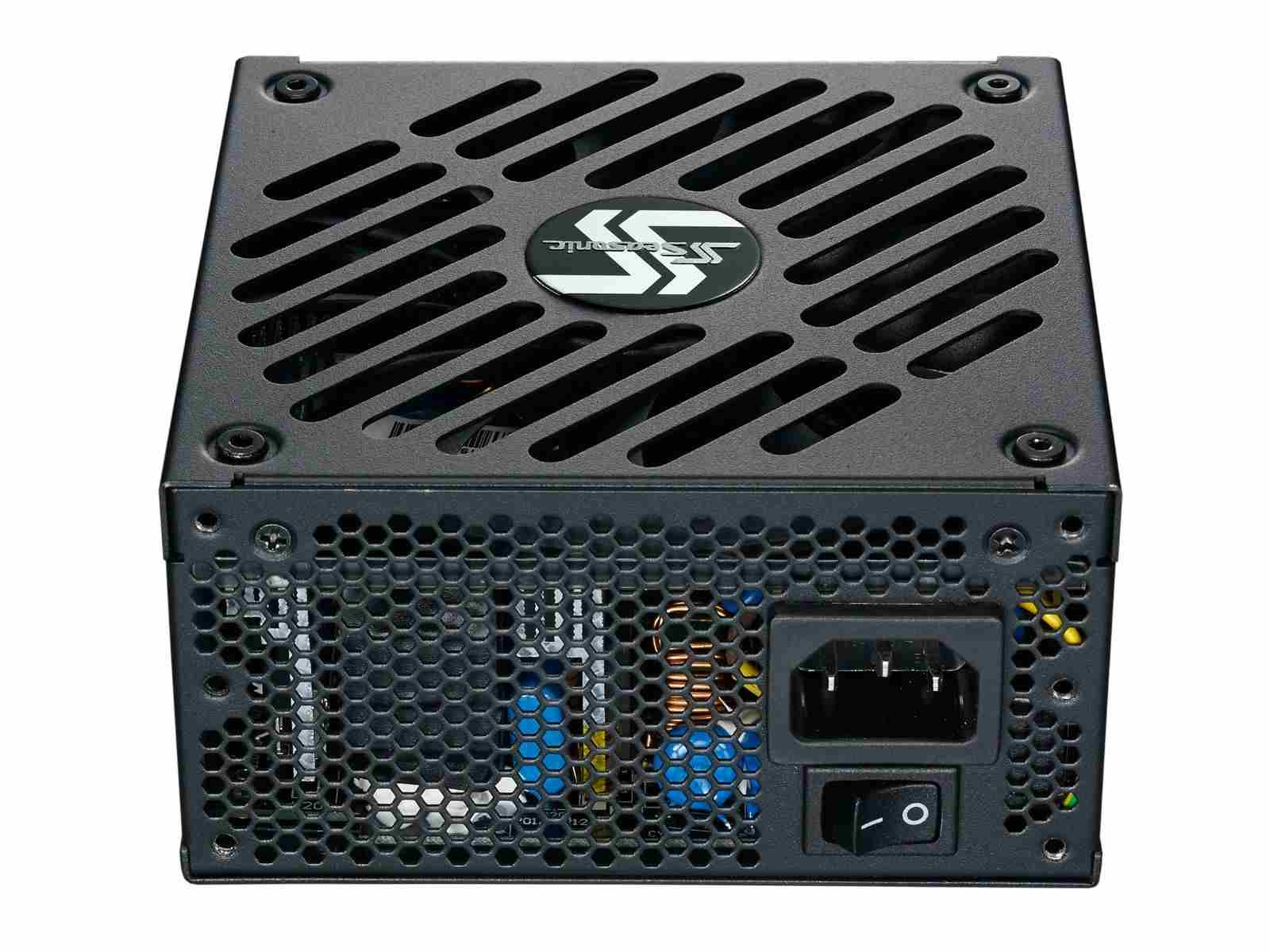

SEASONIC zdroj 500W Focus SGX-500 Gold (SSR-500SGX), 80+ GOLD

Přidat do oblíbenýchSEASONIC zdroj 500W  Focus SGX-500 Gold (SSR-500SGX), 80+ GOLD
Výkon zdroje (ve W):500; Formát zdroje:SFX; Konektory:PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Gold.

Kód produktu522238
Part numberFOCUS-SGX-500
EAN produktu4711173875246

Záruka:10 Rok(ů)
Výrobce:Seasonic
Skladová dostupnost:Na dotaz
Vaše cena bez DPH
2540.50 Kč
Vaše cena včetně DPH
3074 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

80 PLUS® Gold

The FOCUS PLUS Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

Compact SFX-L Size

The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.

Smart and Silent Fan Control [S3FC]

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Benefits

  • Reduced noise without increase in temperature;
  • Extended fan life due to the reduced number of fan rotations;
  • Optimized heat dissipation at all times;
  • Unsurpassed silent performance in Fanless Mode.

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

How it works

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

feature summary

  • 80 PLUS® Gold certified
  • Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm
  • Tight Voltage Regulation
  • Cable-free Connection Design
  • S3FC - Fanless until 30 % load
  • SFX to ATX Expandability
  • Gold plated connectors
  • 10 years warranty

Specifications

Cables

SSR-500SGX

Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 350 1
CPU-650 CPU (8/4 pins) 1 400 1
PCIe-750-2x PCIe (8/6 pins) 2 500 1
PCIe-750-1x PCIe (8/6 pins) 1 750 0
SATA-810-4x-90 SATA 4 810 0
SATA-800-4x-180 SATA 4 800 0
SATA-760-4x-90 SATA 4 760 0
SATA-700-2x-90 SATA 2 700 0
SATA-600-3x-90 SATA 3 600 1
SATA-570-2x-180 SATA 2 570 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 0
Molex-690-3x Molex 3 700 1
Molex-470-2x Molex 2 470 0
Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 0
Molex-to-FDD-101 Molex to FDD Adapter 1 101 0

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level ETA-A
Cybenetics Noise Level LAMBDA-S++
Form Factor Intel SFX 12 V / ATX 12 V
Dimensions 125 mm (L) x 125 mm (W) x 63.5 mm (H)
Fan Information Fan Size 120 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 6 - 3 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 41 A 0.3 A 3 A
100 W 492 W 3.6 W 15 W
Total continuous power

500 W

.
Formát zdroje: SFX
Konektory: PCIe 6-pin
Konektory: PCIe 8-pin
Konektory: SATA 15-pin
Konektory: Molex
Konektory: FDD
Konektory pro základní desku: ATX 24-pin
Konektory pro základní desku: EPS 8-pin
Efektivita zdroje: 80 Plus Gold
Modulární kabeláž: Ano
Výkon zdroje (W): 500
